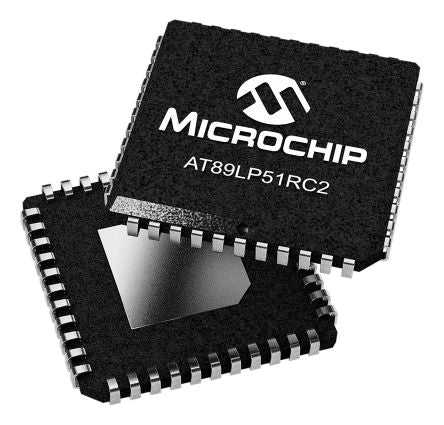

Microchip Technology AT89LP51RC2-20JU, 8bit 8051 Microcontroller, 20MHz, 32 kB Flash, 44-Pin PLCC [AT89LP51RC2-20JU]; 127-6635
by Microchip
0₫
Mã kho: 1276635
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | AT89LP |
| Package Type | PLCC |
| Mounting Type | Surface Mount |
| Pin Count | 44 |
| Device Core | 8051 |
| Data Bus Width | 8bit |
| Program Memory Size | 32 kB |
| Maximum Frequency | 20MHz |
| RAM Size | 1.375 kB |
| Number of PWM Units | 1 |
| ADC Channels | 8 |
| Typical Operating Supply Voltage | 2.4 → 5.5 V |
| Timer Resolution | 16bit |
| Height | 4.06mm |
| PWM Channels | 7 |
| Width | 16.66mm |
| Timers | 1(3 x 16 bit) |
| Pulse Width Modulation | 1(7 x 8 bit) |
| Program Memory Type | Flash |
| Length | 16.66mm |
| Number of Timers | 1 |
| ADCs | 1(8 x 10 bit) |
| Dimensions | 16.66 x 16.66 x 4.06mm |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -40 °C |
| Instruction Set Architecture | 8051 |
| Number of ADC Units | 1 |
| ADC Resolution | 10bit |
| PWM Resolution | 8bit |
