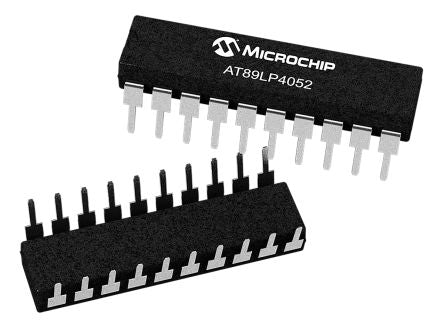

Microchip Technology AT89LP4052-20PU, 8bit 8051 Microcontroller, 20MHz, 4 kB Flash, 20-Pin PDIP [AT89LP4052-20PU]; 127-6632
by Microchip
0₫
Mã kho: 1276632
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | AT89LP |
| Package Type | PDIP |
| Mounting Type | Through Hole |
| Pin Count | 20 |
| Device Core | 8051 |
| Data Bus Width | 8bit |
| Program Memory Size | 4 kB |
| Maximum Frequency | 20MHz |
| RAM Size | 256 B |
| Number of PWM Units | 1 |
| Typical Operating Supply Voltage | 2.4 → 5.5 V |
| Instruction Set Architecture | CISC |
| Pulse Width Modulation | 1(2 x 8 bit) |
| PWM Resolution | 8bit |
| Number of Timers | 1 |
| Length | 26.92mm |
| Maximum Operating Temperature | +85 °C |
| Program Memory Type | Flash |
| Dimensions | 26.92 x 7.11 x 4.95mm |
| Minimum Operating Temperature | -40 °C |
| Timers | 1(2 x 16 bit) |
| Width | 7.11mm |
| PWM Channels | 2 |
| Height | 4.95mm |
| Timer Resolution | 16bit |
