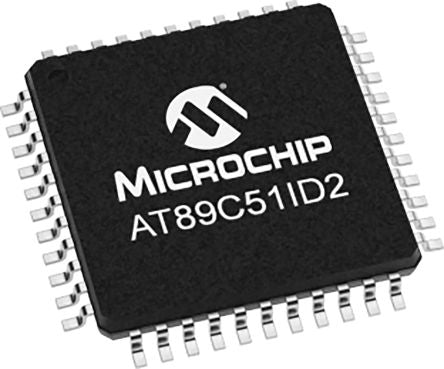

Microchip Technology AT89C51ID2-RLTUM, 8bit Microcontroller, 40MHz, 64 kB Flash, 44-Pin VQFP [AT89C51ID2-RLTUM]; 177-3941
by Microchip
0₫
Mã kho: 1773941
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Family Name | AT89C51 |
Package Type | VQFP |
Mounting Type | Surface Mount |
Pin Count | 44 |
Device Core | 80C52 |
Data Bus Width | 8bit |
Program Memory Size | 64 kB |
Maximum Frequency | 40MHz |
RAM Size | 2.048 kB |
Number of PWM Units | 1 |
Number of SPI Channels | 1 |
Typical Operating Supply Voltage | 5.5 (Maximum) V |
Number of I2C Channels | 1 |
Number of UART Channels | 1 |
Length | 10.1mm |
Number of Timers | 1 |
Maximum Operating Temperature | +85 °C |
PWM Resolution | 8bit |
Pulse Width Modulation | 1 (5 x 8 bit) |
Minimum Operating Temperature | -40 °C |
PWM Channels | 5 |
Program Memory Type | Flash |
Height | 1.45mm |
Timer Resolution | 16bit |
Width | 10.1mm |
Dimensions | 10.1 x 10.1 x 1.45mm |
Instruction Set Architecture | 8051 |
