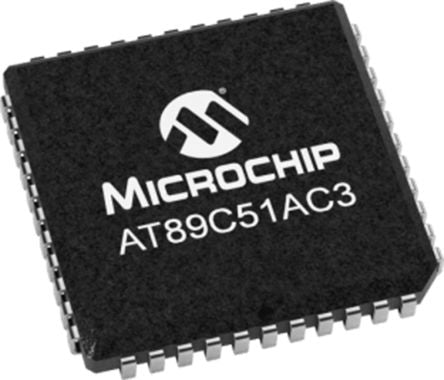

Microchip Technology AT89C51AC3-SLSUM, 8bit 8 bit CPU Microcontroller, 60MHz, 64 kB Flash, 44-Pin PLCC [AT89C51AC3-SLSUM]; 177-1474
by Microchip
0₫
Mã kho: 1771474
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Family Name | AT89C51 |
Package Type | PLCC |
Mounting Type | Surface Mount |
Pin Count | 44 |
Device Core | 8 bit CPU |
Data Bus Width | 8bit |
Program Memory Size | 64 kB |
Maximum Frequency | 60MHz |
RAM Size | 256 B |
Number of PWM Units | 1 |
ADC Channels | 8 |
Number of SPI Channels | 1 |
Typical Operating Supply Voltage | 5.5 (Maximum) V |
Length | 16.66mm |
ADCs | 1 (8 x 10 bit) |
Number of Timers | 1 |
Instruction Set Architecture | 80C51 |
Number of ADC Units | 1 |
Program Memory Type | Flash |
Maximum Operating Temperature | +85 °C |
Number of UART Channels | 1 |
ADC Resolution | 10bit |
PWM Resolution | 8bit |
PWM Channels | 5 |
Height | 4.06mm |
Timer Resolution | 16bit |
Pulse Width Modulation | 1 (5 x 8 bit) |
Dimensions | 16.66 x 16.66 x 4.06mm |
Minimum Operating Temperature | -40 °C |
Width | 16.66mm |
