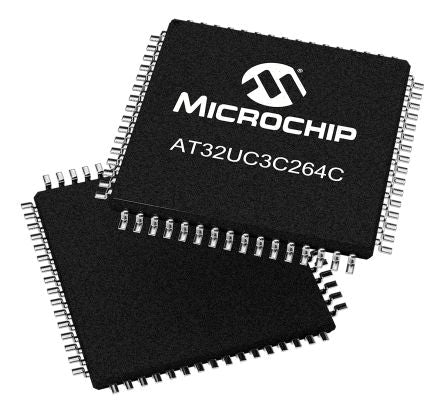

Microchip AT32UC3C264C-A2UT, 32bit AVR32 Microcontroller, 66MHz, 64 kB Flash, 64-Pin TQFP [AT32UC3C264C-A2UT]; 127-6590
by Microchip
0₫
Mã kho: 1276590
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Family Name | AT32 |
Package Type | TQFP |
Mounting Type | Surface Mount |
Pin Count | 64 |
Device Core | AVR32 |
Data Bus Width | 32bit |
Program Memory Size | 64 kB |
Maximum Frequency | 66MHz |
RAM Size | 16 kB |
USB Channels | 1 x Device, 1 x Host |
Number of PWM Units | 1 |
ADC Channels | 11 |
Typical Operating Supply Voltage | 3.3 V, 5 V |
Dimensions | 10 x 10 x 1.05mm |
Timers | 1(3 x 16 bit) |
Instruction Set Architecture | DSP, RISC |
Minimum Operating Temperature | -40 °C |
Number of ADC Units | 1 |
Maximum Operating Temperature | +85 °C |
Length | 10mm |
ADCs | 1(11 x 12 bit) |
ADC Resolution | 12bit |
Pulse Width Modulation | 1(4 x 20 bit) |
Number of Timers | 1 |
Program Memory Type | Flash |
Timer Resolution | 16bit |
Height | 1.05mm |
PWM Resolution | 20bit |
Width | 10mm |
PWM Channels | 4 |
