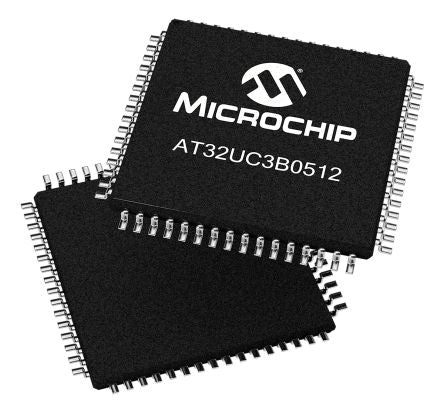

Microchip AT32UC3B0512-A2UT, 32bit AVR32 Microcontroller, 60MHz, 512 kB Flash, 64-Pin TQFP [AT32UC3B0512-A2UT]; 127-6583
by Microchip
0₫
Mã kho: 1276583
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Family Name | AT32 |
Package Type | TQFP |
Mounting Type | Surface Mount |
Pin Count | 64 |
Device Core | AVR32 |
Data Bus Width | 32bit |
Program Memory Size | 512 kB |
Maximum Frequency | 60MHz |
RAM Size | 96 kB |
USB Channels | 1 x Device, 1 x Host |
Number of PWM Units | 1 |
ADC Channels | 8 |
Typical Operating Supply Voltage | 3.3 V |
Width | 10mm |
PWM Channels | 7 |
Height | 1.05mm |
ADCs | 1(8 x 10 bit) |
Length | 10mm |
Maximum Operating Temperature | +85 °C |
Number of ADC Units | 1 |
Number of Timers | 1 |
Program Memory Type | Flash |
Timer Resolution | 16bit |
Pulse Width Modulation | 1(7 x 20 bit) |
Dimensions | 10 x 10 x 1.05mm |
Timers | 1(3 x 16 bit) |
Instruction Set Architecture | RISC |
PWM Resolution | 20bit |
Minimum Operating Temperature | -40 °C |
ADC Resolution | 10bit |
