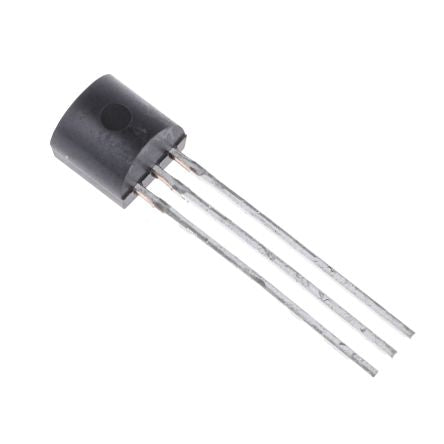

2N7000-G N-Channel MOSFET, 200 mA, 60 (Minimum) V 2N7000, 3-Pin TO-92 Microchip Technology [2N7000-G]; 177-9760
by Microchip
0₫
Mã kho: 1779760
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 200 mA |
| Maximum Drain Source Voltage | 60 V |
| Package Type | TO-92 |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 5.3 Ω |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 3V |
| Minimum Gate Threshold Voltage | 0.8V |
| Maximum Power Dissipation | 1 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | 30 V |
| Number of Elements per Chip | 1 |
| Series | 2N7000 |
| Width | 4.06mm |
| Height | 5.33mm |
| Minimum Operating Temperature | -55 °C |
| Forward Diode Voltage | 0.85V |
| Maximum Operating Temperature | +150 °C |
| Length | 5.08mm |
