Microchip 24LC128-I/ST, 128kbit Serial EEPROM Memory, 900ns 8-Pin TSSOP I2C [24LC128-I/ST]; 687-9085
by Microchip
0₫
Mã kho: 6879085
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Memory Size | 128kbit |
| Interface Type | I2C |

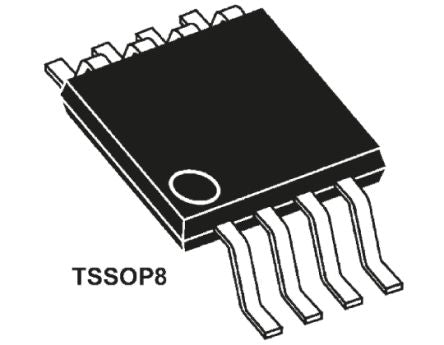

| Package Type | TSSOP |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Organisation | 16K x 8 bit |
| Minimum Operating Supply Voltage | 2.5 V |
| Maximum Operating Supply Voltage | 5.5 V |
| Programming Voltage | 2.5 → 5.5V |
| Length | 3mm |
| Width | 4.4mm |
| Height | 1mm |
| Dimensions | 3 x 4.4 x 1mm |
| Maximum Random Access Time | 900ns |
| Minimum Operating Temperature | -40 °C |
| Data Retention | 200yr |
| Maximum Operating Temperature | +85 °C |
