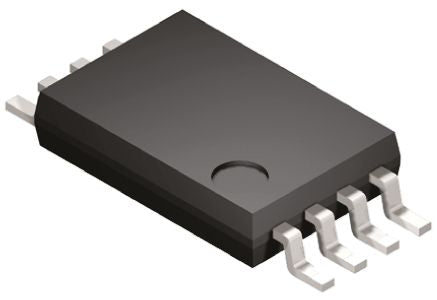

Microchip 24AA256UID-I/ST, 256kbit Serial EEPROM Memory, 1000ns 8-Pin TSSOP I2C [24AA256UID-I/ST]; 178-4055
by Microchip
0₫
Mã kho: 1784055
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Memory Size | 256kbit |
| Interface Type | I2C |
| Package Type | TSSOP |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Organisation | 32K x 8 bit |
| Minimum Operating Supply Voltage | 1.7 V |
| Maximum Operating Supply Voltage | 5.5 V |
| Number of Bits per Word | 8bit |
| Length | 3.1mm |
| Width | 4.5mm |
| Height | 1.05mm |
| Dimensions | 3.1 x 4.5 x 1.05mm |
| Data Retention | 200yr |
| Number of Words | 32K |
| Maximum Operating Temperature | +85 °C |
| Maximum Random Access Time | 1000ns |
| Minimum Operating Temperature | -40 °C |
