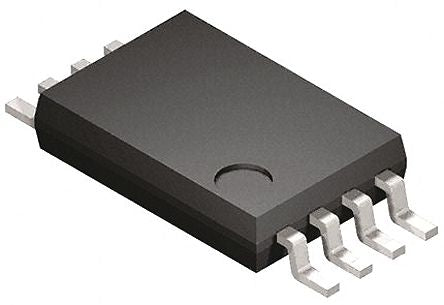

Microchip 24AA256-I/ST, 256kbit Serial EEPROM Memory, 1000ns 8-Pin TSSOP [24AA256-I/ST]; 178-4077
by Microchip
0₫
Mã kho: 1784077
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Memory Size | 256kbit |
Package Type | TSSOP |
Mounting Type | Surface Mount |
Pin Count | 8 |
Organisation | 32K x 8 bit |
Minimum Operating Supply Voltage | 1.7 V |
Maximum Operating Supply Voltage | 5.5 V |
Programming Voltage | 1.7 → 5.5V |
Number of Bits per Word | 8bit |
Length | 3.1mm |
Width | 4.5mm |
Height | 1.05mm |
Dimensions | 3.1 x 4.5 x 1.05mm |
Number of Words | 32 |
Maximum Operating Temperature | +85 °C |
Minimum Operating Temperature | -40 °C |
Data Retention | >200yr |
Maximum Random Access Time | 1000ns |
