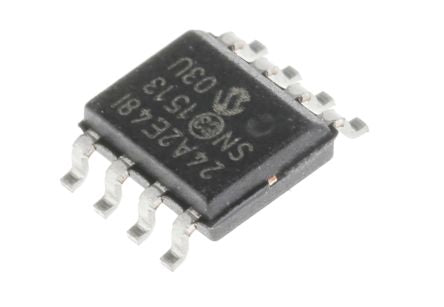

Microchip 24AA02E48-I/SN, 2kbit Serial EEPROM Memory, 3500ns 8-Pin SOIC I2C [24AA02E48-I/SN]; 178-4006
by Microchip
0₫
Mã kho: 1784006
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Memory Size | 2kbit |
| Interface Type | I2C |
| Package Type | SOIC |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Organisation | 256 x 8 bit |
| Minimum Operating Supply Voltage | 1.7 V |
| Maximum Operating Supply Voltage | 5.5 V |
| Programming Voltage | 1.7 → 5.5V |
| Length | 4.9mm |
| Width | 3.9mm |
| Height | 1.25mm |
| Dimensions | 4.9 x 3.9 x 1.25mm |
| Minimum Operating Temperature | -40 °C |
| Data Retention | 200yr |
| Maximum Operating Temperature | +85 °C |
| Maximum Random Access Time | 3500ns |
