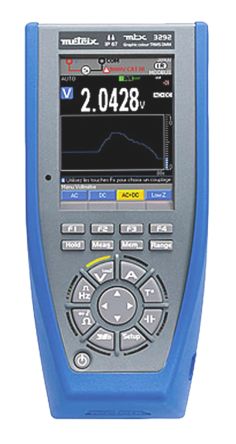

Metrix 3292 Handheld Digital Multimeter, 10A ac 1000V ac 10A dc 1000V dc [MTX3292B]; 823-2716
by Metrix
0₫
Mã kho: 8232716
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Multimeter Type | Handheld |
| Absolute Maximum AC Current Measurement | 10A ac |
| Absolute Maximum DC Current Measurement | 10A dc |
| Absolute Maximum DC Voltage Measurement | 1000V dc |
| Absolute Maximum AC Voltage Measurement | 1000V ac |
| Absolute Maximum Resistance Measurement | 100MΩ |
| Absolute Maximum Temperature Measurement | +800 (pT) °C, +1200 (KTC) °C |
| Absolute Maximum Capacitance Measurement | 10mF |
| Functions Measured | AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode Test, Filter MLI, Frequency, GRAPH, MAX/MIN/AVG Monitoring, REL, Resistance, Secondary Measurements, SPEC, Temperature |
| True RMS | Yes |
| Maximum Frequency | 5MHz |
| Display Type | Graphic Colour |
| Model Number p | MTX 3292B |
| DC Current Measurement Resolution | 10nA dc |
| AC Current Measurement Resolution | 10nA ac |
| AC Voltage Measurement Resolution | 1µV ac |
| Resistance Measurement Resolution | 1mΩ |
| DC Voltage Measurement Resolution | 1µV dc |
| Capacitance Measurement Resolution | 1pF |
| Dimensions | 196 x 90 x 47.1mm |
| Best DC Voltage Accuracy | 0.03% + 8 digits |
| Width | 90mm |
| Length | 196mm |
| Maximum Operating Temperature | +40°C |
| Best Capacitance Measurement Accuracy | 1% + 8 digits |
| Best Resistance Measurement Accuracy | 0.07% + 8 digits |
| Minimum Operating Temperature | 0°C |
| Battery Type | AA, NiMH |
| Safety Category Voltage | 600 V, 1000 V |
| Height | 47.1mm |
| Best DC Current Accuracy | 0.08% + 8 digits |
| Weight | 570g |
| Safety Category Level | CAT III, CAT IV |
| Best Temperature Measurement Accuracy | 0.005 |
| Best AC Current Accuracy | 0.3% + 50 digits |
| Best AC Voltage Accuracy | 0.3% + 50 digits |
