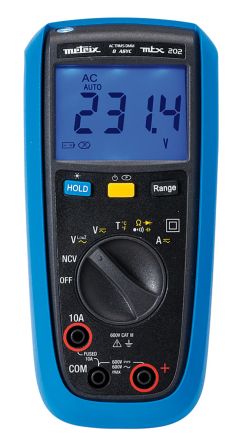

Metrix MTX202 Handheld Digital Multimeter, 10A ac 600V ac 10A dc 600V dc [MTX202-Z]; 913-2392
by Metrix
0₫
Mã kho: 9132392
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Multimeter Type | Handheld |
| Absolute Maximum AC Current Measurement | 10A ac |
| Absolute Maximum DC Current Measurement | 10A dc |
| Absolute Maximum DC Voltage Measurement | 600V dc |
| Absolute Maximum AC Voltage Measurement | 600V ac |
| Absolute Maximum Resistance Measurement | 40MΩ |
| Absolute Maximum Capacitance Measurement | 100mF |
| Absolute Maximum Temperature Measurement | +1200°C |
| Functions Measured | AC Current, AC Voltage, DC Current, DC Voltage, Resistance, Temperature |
| True RMS | Yes |
| Maximum Frequency | 1kHz |
| Display Type | Backlit LCD |
| Model Number p | MTX202 |
| AC Voltage Measurement Resolution | 0.001V ac |
| DC Voltage Measurement Resolution | 0.001V dc |
| Capacitance Measurement Resolution | 2% + 5 digits |
| Best Temperature Measurement Accuracy | 2% + 1°C |
| Safety Category Voltage | 600V |
| Weight | 320g |
| Best DC Voltage Accuracy | 0.2% + 2 digits |
| Dimensions | 170 x 80 x 50mm |
| Best AC Voltage Accuracy | 0.5% + 4 digits |
| Battery Type | AA |
| Height | 50mm |
| Length | 170mm |
| Width | 80mm |
| Best AC Current Accuracy | 0.5% + 3 digits |
| Safety Category Level | CAT III |
| Best Resistance Measurement Accuracy | 0.5% + 5 digits |
| Best Capacitance Measurement Accuracy | 2% + 5 digits |
