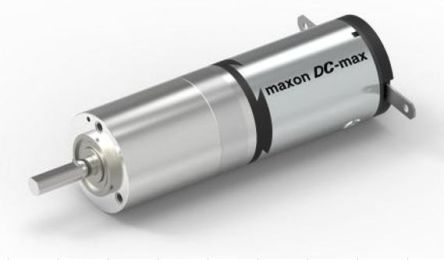

Maxon, 24 V, 1.6 Nm, Brushed DC Geared Motor, Output Speed 5350 RPM, 7330 (No Load) RPM [B7744E74122F]; 181-7574
by Maxon
0₫
Mã kho: 1817574
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Speed | 5350 rpm, 7330 (No Load) rpm |
| Supply Voltage | 24 V dc |
| Maximum Output Torque | 1.6 Nm |
| DC Motor Type | Brushed |
| Shaft Diameter | 2mm |
| Power Rating | 9.81 W |
| Gearhead Type | Planetary |
| Length | 67.3mm |
| Width | 22mm |
| Dimensions | 22 Dia. x 67.3 mm |
| Current Rating | 390 mA |
| Gear Ratio | 4.29236111111111 |
| Shaft Angle | Straight |
| Series | DCX |
