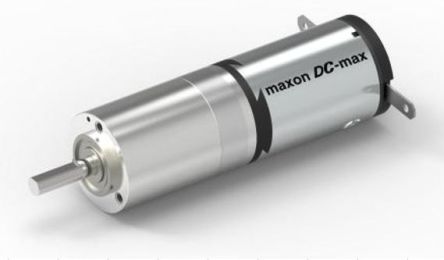

Maxon, 12 V, 0.47 nm, Brushed DC Geared Motor, Output Speed 6200 RPM, 9860 (No Load) RPM [B7744E716F2E]; 181-7564
by Maxon
0₫
Mã kho: 1817564
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Speed | 6200 rpm, 9860 (No Load) rpm |
| Supply Voltage | 12 V dc |
| Maximum Output Torque | 47 Ncm |
| DC Motor Type | Brushed |
| Shaft Diameter | 1.5mm |
| Power Rating | 4.22 W |
| Gearhead Type | Planetary |
| Length | 54.1mm |
| Width | 16mm |
| Dimensions | 16 Dia. x 54.1 mm |
| Current Rating | 410 mA |
| Shaft Angle | Straight |
| Series | DCX |
| Gear Ratio | 4.29236111111111 |
