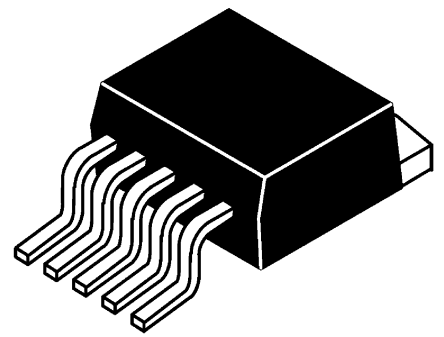

EXAR SPX29302T5-L/TR, LDO Regulator, 3A Adjustable, 1.25 → 16 V, ±1% 5-Pin D2PAK [SPX29302T5-L/TR]; 686-5869
by MaxLinear
0₫
Mã kho: 6865869
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 1.25 → 16 V |
| Output Type | Adjustable |
| Package Type | D2PAK (TO-263) |
| Maximum Output Current | 3A |
| Mounting Type | Surface Mount |
| Maximum Input Voltage | 16 V |
| Pin Count | 5 |
| Number of Outputs | 1 |
| Polarity | Positive |
| Quiescent Current | 40mA |
| Accuracy | ±1% |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Length | 10.67mm |
| Dimensions | 10.67 x 9.65 x 4.83mm |
| Line Regulation | 0.005 |
| Load Regulation | 0.01 |
| Height | 4.83mm |
| Reference Voltage | 1.277V |
| Width | 9.65mm |
