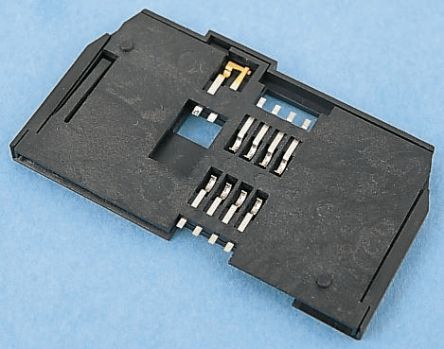

Amphenol FCI 16 Way Right Angle Smart Card Memory Card Connector With Solder Termination [7312P0235A13LF]; 121-7422
by Masterplug
0₫
Mã kho: 1217422
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Card Type | Smart Card |
| Gender | Male |
| Number of Contacts | 16 |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Body Orientation | Right Angle |
| Mounting Type | Surface Mount |
| Contact Material | Copper Alloy |
| Contact Plating | Gold over Nickel |
| Termination Method | Solder |
| Housing Material | Thermoplastic |
| Length | 57.8mm |
| Width | 3.6mm |
| Depth | 33.68mm |
| Maximum Operating Temperature | +70°C |
| Minimum Operating Temperature | -20°C |
| Dimensions | 57.8 x 3.6 x 33.68mm |
