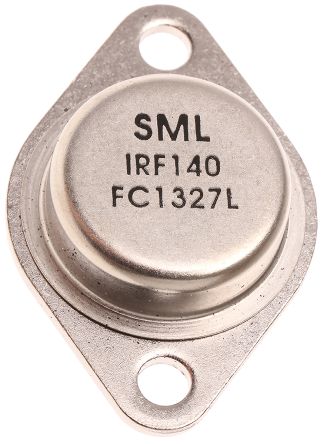

IRF140 N-Channel MOSFET, 28 A, 100 V, 3-Pin TO-3 Magnatec [IRF140]; 263-6910
by Magnatec
0₫
Mã kho: 2636910
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 28 A |
Maximum Drain Source Voltage | 100 V |
Package Type | TO-3 |
Mounting Type | Through Hole |
Pin Count | 3 |
Maximum Drain Source Resistance | 89 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 4V |
Maximum Power Dissipation | 125 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -20 V, +20 V |
Number of Elements per Chip | 1 |
Width | 26.67mm |
Height | 7.87mm |
Maximum Operating Temperature | +150 °C |
Transistor Material | Si |
Minimum Operating Temperature | -55 °C |
Typical Gate Charge @ Vgs | 359 nC @ 10 V |
Length | 39.95mm |
