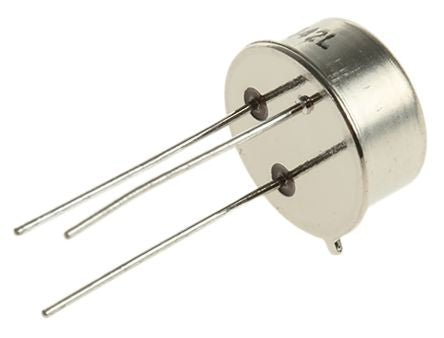

2N6796 N-Channel MOSFET, 8 A, 100 V, 3-Pin TO-39 Magnatec [2N6796]; 189-0646
by Magnatec
0₫
Mã kho: 1890646
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 0.333333333333333 |
| Maximum Drain Source Voltage | 100 V |
| Package Type | TO-39 |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 180 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 4V |
| Maximum Power Dissipation | 25 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Length | 9.4mm |
| Transistor Material | Si |
| Maximum Operating Temperature | +150 °C |
| Height | 4.57mm |
| Width | 9.4mm |
