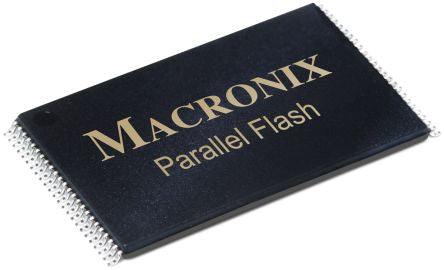

Macronix MX29GL640ETTI-70G, Parallel 64Mbit Flash Memory, 70ns; 3V, 48-Pin TSOP [MX29GL640ETTI-70G]; 914-2793
by Macronix
0₫
Mã kho: 9142793
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Memory Size | 64Mbit |
| Interface Type | Parallel |
| Package Type | TSOP |
| Pin Count | 48 |
| Organisation | 4M x 16 bit, 8M x 8 bit |
| Mounting Type | Surface Mount |
| Minimum Operating Supply Voltage | 2.7 V |
| Maximum Operating Supply Voltage | 3.6 V |
| Length | 18.5mm |
| Height | 1.05mm |
| Width | 12.1mm |
| Dimensions | 18.5 x 12.1 x 1.05mm |
| Number of Words | 4M, 8M |
| Number of Banks | 4 |
| Maximum Random Access Time | 70ns |
| Minimum Operating Temperature | -40 °C |
| Number of Bits per Word | 8 bit, 16 bit |
| Maximum Operating Temperature | +85 °C |
