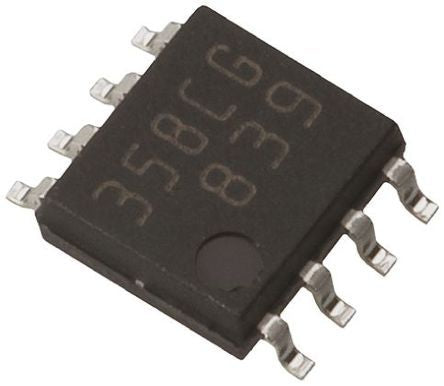

Macronix MX25L2006EM1I-12G, Serial NOR 2Mbit Flash Memory, 8-Pin SOP [MX25L2006EM1I-12G]; 170-3077
by Macronix
0₫
Mã kho: 1703077
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Memory Size | 2Mbit |
| Interface Type | Serial |
| Package Type | SOP |
| Pin Count | 8 |
| Organisation | 1M x 2 bit, 2M x 1 bit |
| Mounting Type | Surface Mount |
| Cell Type | NOR |
| Minimum Operating Supply Voltage | 2.7 V |
| Maximum Operating Supply Voltage | 3.6 V |
| Length | 5.03mm |
| Height | 1.55mm |
| Width | 4mm |
| Dimensions | 5.03 x 4 x 1.55mm |
| Minimum Operating Temperature | -40 °C |
| Number of Words | 1M, 2M |
| Number of Bits per Word | 1 bit, 2 bit |
| Maximum Operating Temperature | +85 °C |
