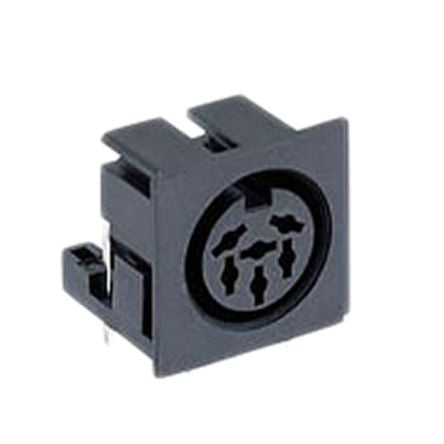

Lumberg 6 Pole Right Angle Din Socket, DIN 45322, 4A, 24 V ac, Quick Connect [010599 06]; 909-2222
by Lumberg
0₫
Mã kho: 9092222
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Number of Contacts | 6 |
Gender | Female |
Mounting Type | PCB Mount |
Connector Size | Standard |
Mating Type | Quick Connect |
Termination Method | Pin |
Body Orientation | Right Angle |
Current Rating | 4A |
Voltage Rating | 24 V ac |
DIN Number | DIN 45322 |
Housing Material | PBT |
Contact Material | CuZn |
Contact Plating | Tin |
Minimum Operating Temperature | -25°C |
Maximum Operating Temperature | +80°C |
