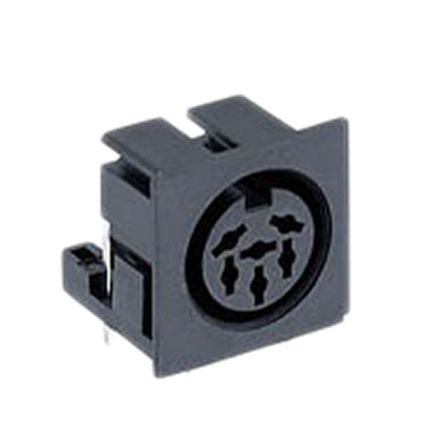

Lumberg 6 Pole Right Angle Din Socket, DIN 45322, 4A, 24 V ac, Quick Connect [010599 06]; 170-5678
by Lumberg
0₫
Mã kho: 1705678
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 6 |
| Gender | Female |
| Mounting Type | PCB Mount |
| Connector Size | Standard |
| Mating Type | Quick Connect |
| Termination Method | Pin |
| Body Orientation | Right Angle |
| Current Rating | 4A |
| Voltage Rating | 24 V ac |
| DIN Number | DIN 45322 |
| Housing Material | PBT |
| Maximum Operating Temperature | +80°C |
| Contact Plating | Tin |
| Minimum Operating Temperature | -25°C |
| Contact Material | CuZn |
