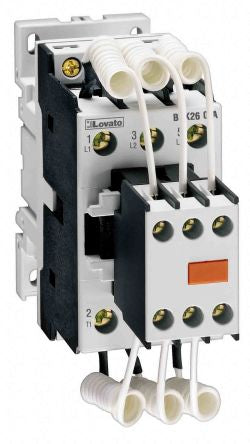

3P CONTACTOR 20KVAR 230V 50/60HZ [BFK2600A230]; 188-1587
by Lovato
0₫
Mã kho: 1881587
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 230 V ac |
| Number of Poles | 3 |
| Contact Current Rating | 30 A |
| Power Rating | 20 kVar |
| Series | BFK |
| Normal State Configuration | 3NO |
| Contact Voltage Rating | 690 V |
| Terminal Type | Screw |
| Depth | 123mm |
| Minimum Operating Temperature | -50°C |
| Length | 45mm |
| Width | 125.5mm |
| Maximum Operating Temperature | +70°C |
