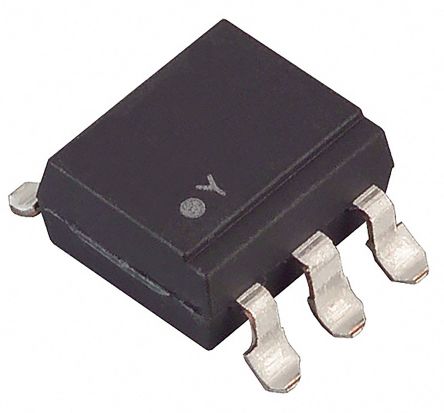

Lite-On, CNY17-3S-TA1 DC Input Transistor Output Optocoupler, Surface Mount, 6-Pin PDIP [CNY17-3S-TA1]; 168-9420
by Lite-On
0₫
Mã kho: 1689420
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Mounting Type | Surface Mount |
Output Device | Transistor |
Maximum Forward Voltage | 1.65V |
Number of Channels | 1 |
Number of Pins | 6 |
Package Type | PDIP |
Input Current Type | DC |
Typical Rise Time | 5µs |
Maximum Input Current | 60 mA |
Isolation Voltage | 5 kVrms |
Maximum Current Transfer Ratio | 2 |
Typical Fall Time | 5µs |
Special Features | Dual-In-Line SMD Package, High Collector-Emitter Voltage, High Isolation Voltage |
Series | CNY17 |
