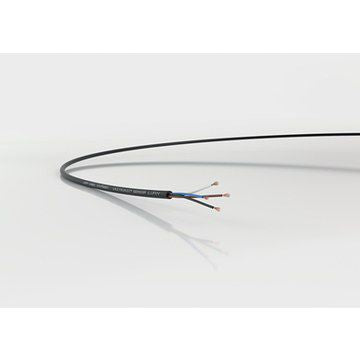

Lapp 4 Core Polyvinyl Chloride PVC Sheath Actuator/Sensor Cable, 0.36 mm² CSA [7038861]; 560-391
by Lapp
0₫
Mã kho: 560391
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 4 |
| Cross Sectional Area | 0.36 mm² |
| Screened/Unscreened | Unscreened |
| Length | 50m |
| Outer Diameter | 4.8mm |
| Voltage Rating | 900 V |
| Sheath Material | Polyvinyl Chloride PVC |
| American Wire Gauge | 22 AWG |
| Cable Shape | Multicore |
| Insulation Material | PVC |
| Sheath Colour | Black |
| Size of Strands | 0.34 mm |
| Maximum Operating Temperature | +70°C |
| Minimum Operating Temperature | -5°C |
| Number of Strands | 4 |
| Minimum Bend Radius | 10 x D |
| Conductor Material | Bare Copper |
| Core Strands | 4/0.34 mm |
