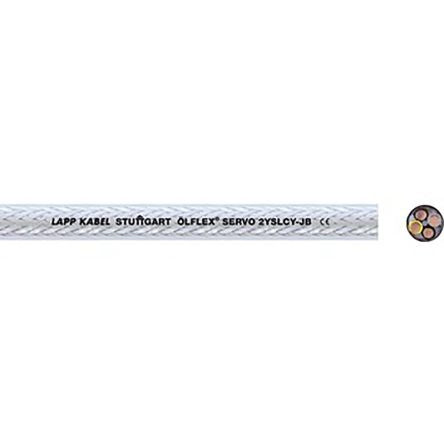

Lapp Olflex Servo 2YSLCY-JB 4 Core CY Control Cable 2.5 mm², 50m, Screened [36426]; 144-872
by Lapp
0₫
Mã kho: 144872
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Number of Cores | 4 |
Cross Sectional Area | 2.5 mm² |
Length | 50m |
Current Rating | 26 A |
Outer Diameter | 12.4mm |
Voltage Rating | 600/1000 V |
Sheath Colour | Transparent |
American Wire Gauge | 13 AWG |
Earth Cable | Yes |
Minimum Operating Temperature | -40°C |
Maximum Operating Temperature | +70°C |
Sheath Material | Polyvinyl Chloride PVC |
Screened/Unscreened | Screened |
Screen Type | Tinned Copper Braid |
Insulation Material | PE |
Filler Material | Non-Wicking Filler |
Conductor Resistance | 7.98 Ω/km |
Series | ÖLFLEX SERVO 2YSL CY |
Bedding Material | Aluminium Foil |
Minimum Bend Radius | Fixed - 4 x D Occasional Flexing - 15 x D |
Conductor Material | Copper |
Core Strands | 50/0.25 mm |
