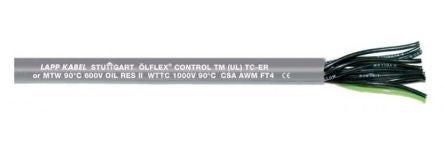

Lapp 12 Conductor Unscreened Industrial Cable 1.5 mm²(CE, CSA, UL) Grey 50m Reel, ÖLFLEX CONTROL TM Series [281612]; 807-9653
by Lapp
0₫
Mã kho: 8079653
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 12 |
| Cross Sectional Area | 1.5 mm² |
| Screened/Unscreened | Unscreened |
| Length | 50m |
| Sheath Colour | Grey |
| American Wire Gauge | 15 AWG |
| Outer Diameter | 14.1mm |
| Screen Type | Unscreened |
| Maximum Operating Temperature | +90°C |
| Voltage Rating | 600 V |
| Fire Behaviour | Flame Retardant |
| Insulation Material | PVC |
| Drain Wire | Yes |
| Conductor Material | Bare Copper |
| Minimum Bend Radius | 5 x Diameter |
| Series | ÖLFLEX CONTROL TM |
| Standards Met | CE, CSA, UL |
| Minimum Operating Temperature | -40°C |
