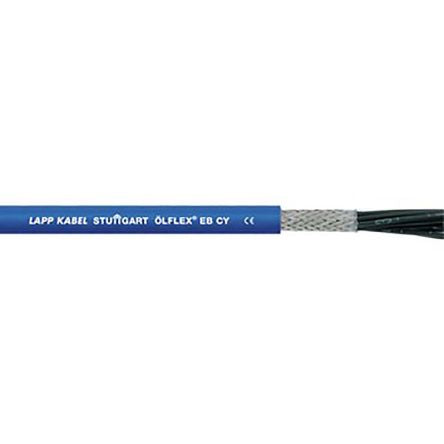

Lapp 12 Conductor Braid, Foil Industrial Cable 1.5 mm²(CE) Blue PVC Sheath, 50m Reel, ÖLFLEX EB CY Series [12664]; 141-306
by Lapp
0₫
Mã kho: 141306
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 12 |
| Cross Sectional Area | 1.5 mm² |
| Screened/Unscreened | Screened |
| Length | 50m |
| Sheath Colour | Blue |
| American Wire Gauge | 15 AWG |
| Outer Diameter | 13mm |
| Screen Type | Braid, Foil |
| Maximum Operating Temperature | +80°C |
| Sheath Material | Polyvinyl Chloride PVC |
| Voltage Rating | 500 V |
| Fire Behaviour | Flame Retardant |
| Minimum Operating Temperature | -40°C |
| Insulation Material | PVC |
| Standards Met | CE |
| Series | ÖLFLEX EB CY |
| Minimum Bend Radius | 10 x Diameter |
| Drain Wire | No |
| Hazardous Area Certification | ATEX |
| Conductor Material | Copper |
