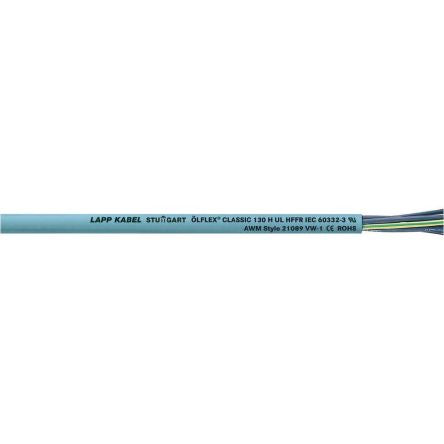

Lapp 3 Conductor Unscreened Industrial Cable 6 mm²(CE, RoHS, UL) Grey 50m Reel, ÖLFLEX CLASSIC 130 H Series [1123166]; 819-9631
by Lapp
0₫
Mã kho: 8199631
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 3 |
| Cross Sectional Area | 6 mm² |
| Screened/Unscreened | Unscreened |
| Length | 50m |
| Sheath Colour | Grey |
| American Wire Gauge | 9 AWG |
| Outer Diameter | 11.7mm |
| Screen Type | Unscreened |
| Maximum Operating Temperature | +80°C |
| Sheath Material | Low Smoke Zero Halogen (LSZH) |
| Voltage Rating | 500 V |
| Fire Behaviour | Flame Retardant, Low Smoke Zero Halogen (LSZH) |
| Minimum Operating Temperature | -40°C |
| Standards Met | CE, RoHS, UL |
| Drain Wire | Yes |
| Conductor Material | Bare Copper |
| Series | ÖLFLEX CLASSIC 130 H |
| Insulation Material | Zero Halogen |
| Minimum Bend Radius | 4 x Diameter |
