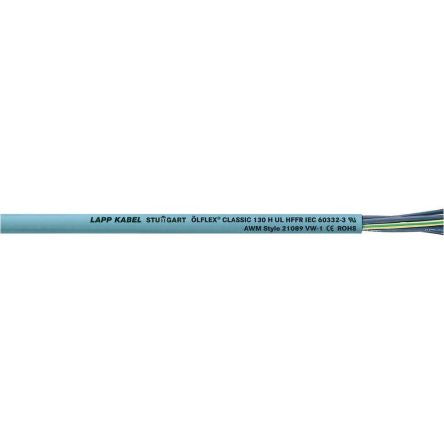

Lapp 12 Conductor Unscreened Industrial Cable 1.5 mm²(CE, RoHS, UL) Grey 50m Reel, ÖLFLEX CLASSIC 130 H Series [1123120]; 141-176
by Lapp
0₫
Mã kho: 141176
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 12 |
| Cross Sectional Area | 1.5 mm² |
| Screened/Unscreened | Unscreened |
| Length | 50m |
| Sheath Colour | Grey |
| American Wire Gauge | 15 AWG |
| Outer Diameter | 12mm |
| Screen Type | Unscreened |
| Maximum Operating Temperature | +80°C |
| Sheath Material | Low Smoke Zero Halogen (LSZH) |
| Voltage Rating | 500 V |
| Fire Behaviour | Flame Retardant, Low Smoke Zero Halogen (LSZH) |
| Standards Met | CE, RoHS, UL |
| Series | ÖLFLEX CLASSIC 130 H |
| Minimum Bend Radius | 4 x Diameter |
| Conductor Material | Copper |
| Drain Wire | Yes |
| Insulation Material | Zero Halogen |
| Minimum Operating Temperature | -40°C |
