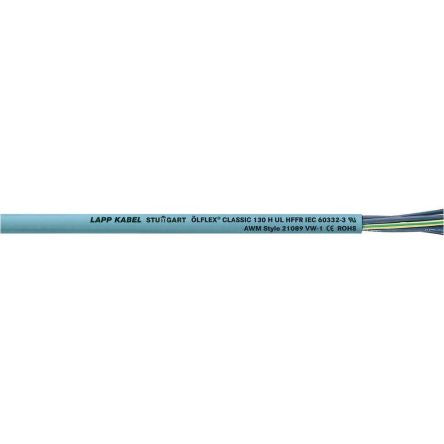

Lapp 4 Conductor Unscreened Industrial Cable 1 mm²(CE, RoHS, UL) Grey 100m Reel, ÖLFLEX CLASSIC 130 H Series [1123069]; 819-9577
by Lapp
0₫
Mã kho: 8199577
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Number of Cores | 4 |
Cross Sectional Area | 1 mm² |
Screened/Unscreened | Unscreened |
Length | 100m |
Sheath Colour | Grey |
American Wire Gauge | 17 AWG |
Outer Diameter | 6.6mm |
Screen Type | Unscreened |
Maximum Operating Temperature | +80°C |
Sheath Material | Low Smoke Zero Halogen (LSZH) |
Voltage Rating | 500 V |
Fire Behaviour | Flame Retardant, Low Smoke Zero Halogen (LSZH) |
Minimum Operating Temperature | -40°C |
Insulation Material | Zero Halogen |
Standards Met | CE, RoHS, UL |
Conductor Material | Bare Copper |
Minimum Bend Radius | 4 x Diameter |
Drain Wire | Yes |
Series | ÖLFLEX CLASSIC 130 H |
