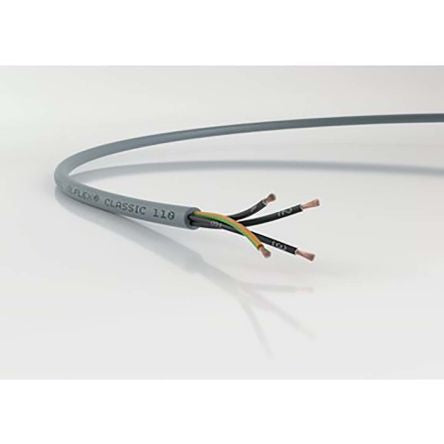

Lapp Lapp Olflex Classic 110 2 Core YY Control Cable, 0.75 mm², 50m, Unscreened [1119802]; 812-4527
by Lapp
0₫
Mã kho: 8124527
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 2 |
| Cross Sectional Area | 0.75 mm² |
| Series | ÖLFLEX CLASSIC 110 |
| Screened/Unscreened | Unscreened |
| Earth Cable | Yes |
| Sheath Colour | Grey |
| Outer Diameter | 5.4mm |
| Current Rating | 0 |
| Voltage Rating | 300/500 V |
| American Wire Gauge | 18 AWG |
| Conductor Material | Copper |
| Core Strands | 24/0.20 mm |
| Oil Resistant | Yes |
| Minimum Bend Radius | Fixed - 4 x D Occasional flexing - 10 x D |
| Insulation Material | PVC |
| Conductor Resistance | 26 Ω/km |
| Sheath Material | Polyvinyl Chloride PVC |
| Maximum Operating Temperature | +80°C |
| Minimum Operating Temperature | -40°C |
| Length | 50m |
| Filler Material | Non-Wicking Filler |
