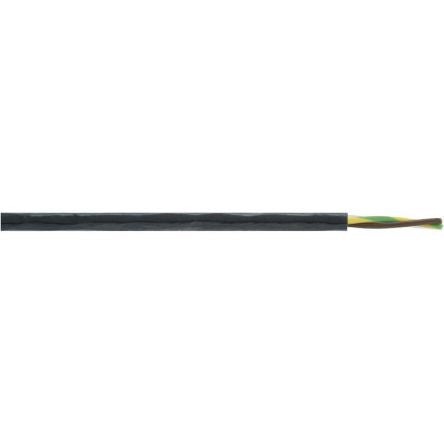

Lapp 4 Conductor Braid, Foil Industrial Cable 0.75 mm²(CE) Black 50m Reel, ÖLFLEX HEAT 260 C MC Series [0091331]; 807-9341
by Lapp
0₫
Mã kho: 8079341
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 4 |
| Cross Sectional Area | 0.75 mm² |
| Screened/Unscreened | Screened |
| Length | 50m |
| Sheath Colour | Black |
| American Wire Gauge | 18 AWG |
| Outer Diameter | 5.9mm |
| Screen Type | Braid, Foil |
| Maximum Operating Temperature | +260°C |
| Sheath Material | Polytetrafluoroethylene PTFE |
| Voltage Rating | 500 V |
| Fire Behaviour | Flame Retardant |
| Standards Met | CE |
| Insulation Material | PTFE |
| Minimum Operating Temperature | -190°C |
| Conductor Material | Nickel Plated Copper |
| Series | ÖLFLEX HEAT 260 C MC |
| Minimum Bend Radius | 4 x Diameter |
| Drain Wire | Yes |
