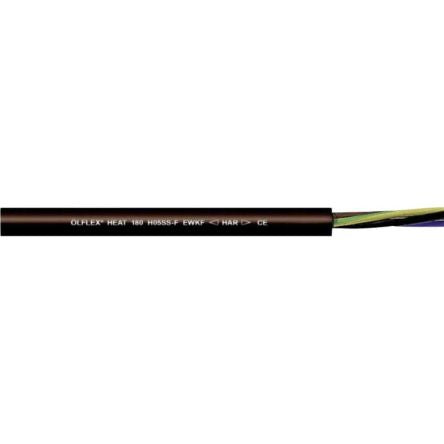

Lapp 2 Conductor Unscreened Industrial Cable 1 mm²(CE) Black 50m Reel, ÖLFLEX HEAT 180 H05SS-F EWKF Series [0046904]; 807-9269
by Lapp
0₫
Mã kho: 8079269
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Number of Cores | 2 |
Cross Sectional Area | 1 mm² |
Screened/Unscreened | Unscreened |
Length | 50m |
Sheath Colour | Black |
American Wire Gauge | 17 AWG |
Outer Diameter | 6.8mm |
Screen Type | Unscreened |
Maximum Operating Temperature | +180°C |
Sheath Material | Silicone |
Voltage Rating | 500 V |
Fire Behaviour | Flame Retardant, Halogen Free |
Drain Wire | Yes |
Minimum Bend Radius | 4 x Diameter |
Series | ÖLFLEX HEAT 180 H05SS-F EWKF |
Standards Met | CE |
Minimum Operating Temperature | -50°C |
Insulation Material | Silicone |
Conductor Material | Copper |
