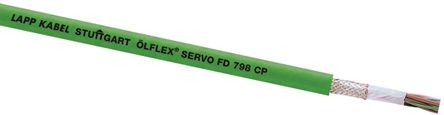

Lapp Olflex Servo FD 798 CP 14 Core CY Control Cable 0.25 mm², 0.5 mm², 50m, Screened [0036916]; 807-9102
by Lapp
0₫
Mã kho: 8079102
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 14 |
| Cross Sectional Area | 0.25 mm², 0.5 mm² |
| Length | 50m |
| Current Rating | 4.5 / 9 A |
| Outer Diameter | 10.3mm |
| Voltage Rating | 30 V |
| Sheath Colour | Green |
| American Wire Gauge | 24 AWG |
| Earth Cable | Yes |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +90°C |
| Oil Resistant | Yes |
| Sheath Material | Polyurethane PUR |
| Conductor Resistance | 39 Ω/km, 79 Ω/km |
| Insulation Material | PP |
| Screened/Unscreened | Screened |
| Core Strands | 14/0.14 mm |
| Filler Material | Non-Wicking Filler |
| Minimum Bend Radius | 7.5 x Diameter |
| Screen Type | Braid |
| Conductor Material | Copper |
| Series | ÖLFLEX SERVO FD 798 CP |
