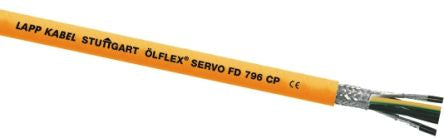

Lapp 4 Core Screened Polyurethane PUR Sheath Actuator/Sensor Cable, 0.75 mm² CSA [0027969]; 800-3221
by Lapp
0₫
Mã kho: 8003221
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Number of Cores | 4 |
Cross Sectional Area | 0.75 mm² |
Screened/Unscreened | Screened |
Outer Diameter | 12.2mm |
Screen Type | Copper Braid |
Voltage Rating | 1 kV, 600 V |
Sheath Material | Polyurethane PUR |
American Wire Gauge | 18 AWG |
Cable Shape | Twisted Pair |
Earth Cable | Yes |
Insulation Material | PP |
Sheath Colour | Orange |
Minimum Bend Radius | 4 x D |
Maximum Operating Temperature | +90°C |
Conductor Material | Copper |
Minimum Operating Temperature | -40°C |
Oil Resistant | Yes |
