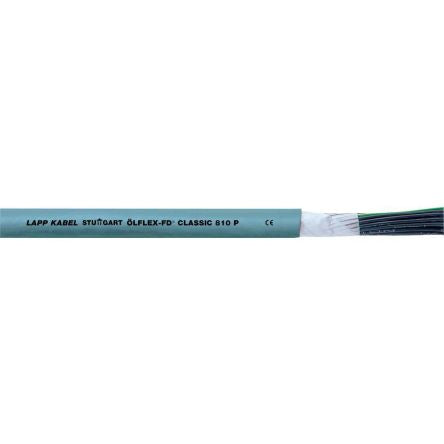

Lapp 25 Conductor Unscreened Industrial Cable 1 mm²(CE) Grey 25m Reel, ÖLFLEX CLASSIC FD 810 P Series [0026339]; 454-8720
by Lapp
0₫
Mã kho: 4548720
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 25 |
| Cross Sectional Area | 1 mm² |
| Screened/Unscreened | Unscreened |
| Length | 25m |
| Sheath Colour | Grey |
| American Wire Gauge | 17 AWG |
| Outer Diameter | 17.8mm |
| Screen Type | Unscreened |
| Maximum Operating Temperature | +80°C |
| Sheath Material | Polyurethane PUR |
| Voltage Rating | 500 V |
| Fire Behaviour | Flame Retardant |
| Insulation Material | PVC |
| Standards Met | CE |
| Minimum Operating Temperature | -40°C |
| Series | ÖLFLEX CLASSIC FD 810 P |
| Drain Wire | Yes |
| Conductor Material | Copper |
| Minimum Bend Radius | 4 x Diameter |
