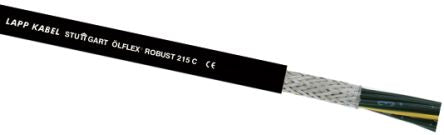

Lapp 3 Core Screened Thermoplastic Elastomers TPE Sheath Actuator/Sensor Cable, 1 mm² CSA [0022734]; 800-3331
by Lapp
0₫
Mã kho: 8003331
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 3 |
| Cross Sectional Area | 1 mm² |
| Screened/Unscreened | Screened |
| Outer Diameter | 6.9mm |
| Screen Type | Copper Braid |
| Voltage Rating | 300 V, 500 V |
| Sheath Material | Thermoplastic Elastomers TPE |
| American Wire Gauge | 17 AWG |
| Cable Shape | Twisted Pair |
| Earth Cable | Yes |
| Insulation Material | PP |
| Sheath Colour | Black |
| Conductor Material | Copper |
| Minimum Bend Radius | 4 x D |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +80°C |
