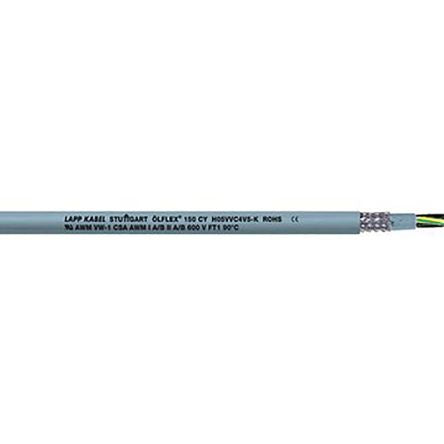

Lapp 3 Conductor Tinned Copper Braid Industrial Cable 2.5 mm²(CE, CSA, UL) Grey PVC Sheath, 50m Reel [0015903]; 807-8922
by Lapp
0₫
Mã kho: 8078922
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Number of Cores | 3 |
Cross Sectional Area | 2.5 mm² |
Screened/Unscreened | Screened |
Length | 50m |
Sheath Colour | Grey |
American Wire Gauge | 13 AWG |
Outer Diameter | 11.9mm |
Screen Type | Tinned Copper Braid |
Maximum Operating Temperature | +70°C |
Sheath Material | Polyvinyl Chloride PVC |
Voltage Rating | 500 V |
Fire Behaviour | Flame Retardant |
Insulation Material | PVC |
Standards Met | CE, CSA, UL |
Minimum Operating Temperature | -40°C |
Conductor Material | Bare Copper |
Drain Wire | Yes |
Minimum Bend Radius | 6 x Diameter |
Series | ÖLFLEX 150 CY |
