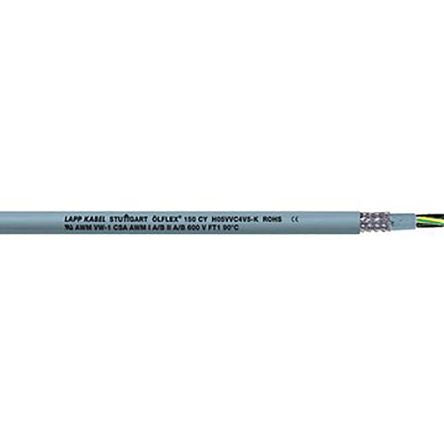

Lapp 2 Conductor Tinned Copper Braid Industrial Cable 1.5 mm²(CE, CSA, UL) Grey PVC Sheath, 50m Reel [0015802]; 807-8907
by Lapp
0₫
Mã kho: 8078907
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 2 |
| Cross Sectional Area | 1.5 mm² |
| Screened/Unscreened | Screened |
| Length | 50m |
| Sheath Colour | Grey |
| American Wire Gauge | 15 AWG |
| Outer Diameter | 10mm |
| Screen Type | Tinned Copper Braid |
| Maximum Operating Temperature | +70°C |
| Sheath Material | Polyvinyl Chloride PVC |
| Voltage Rating | 500 V |
| Fire Behaviour | Flame Retardant |
| Standards Met | CE, CSA, UL |
| Minimum Operating Temperature | -40°C |
| Insulation Material | PVC |
| Conductor Material | Bare Copper |
| Minimum Bend Radius | 6 x Diameter |
| Series | ÖLFLEX 150 CY |
| Drain Wire | Yes |
