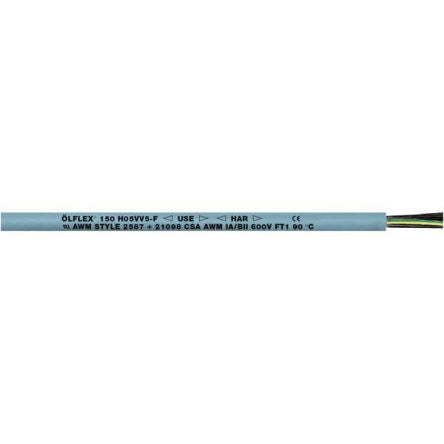

Lapp 4 Conductor Unscreened Industrial Cable 1 mm²(CE, CSA, UL) Grey PVC Sheath, 100m Reel, ÖLFLEX 150 Series [0015204]; 444-0812
by Lapp
0₫
Mã kho: 4440812
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Cores | 4 |
| Cross Sectional Area | 1 mm² |
| Screened/Unscreened | Unscreened |
| Length | 100m |
| Sheath Colour | Grey |
| American Wire Gauge | 17 AWG |
| Outer Diameter | 7.7mm |
| Screen Type | Unscreened |
| Maximum Operating Temperature | +70°C |
| Sheath Material | Polyvinyl Chloride PVC |
| Voltage Rating | 500 V |
| Fire Behaviour | Flame Retardant |
| Series | ÖLFLEX 150 |
| Minimum Bend Radius | 4 x Diameter |
| Conductor Material | Copper |
| Drain Wire | Yes |
| Minimum Operating Temperature | -40°C |
| Insulation Material | PVC |
| Standards Met | CE, CSA, UL |
