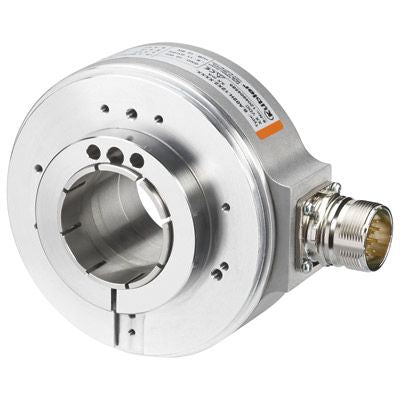

Kubler Encoder 1024 ppr RS422 Hollow 10 → 30 V dc [8.A02H.5231.1024]; 181-1067
by Kubler
0₫
Mã kho: 1811067
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Pulses Per Revolution | 1024 |
| Encoder Technology | Incremental |
| Output Signal Type | Push Pull |
| Shaft Type | Hollow |
| Supply Voltage | 10 → 30 V dc |
| Shaft Diameter | 38mm |
| IP Rating | IP65 |
| Overall Height | 100mm |
| Interface | RS422 |
| Overall Width | 129.8mm |
| Overall Depth | 50mm |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +80°C |
| Switching Frequency | 180 kHz |
| Connection Type | Cable |
| Mounting Type | Hollow Shaft Flange |
| Current Rating | 110 mA |
| Series | A02H |
