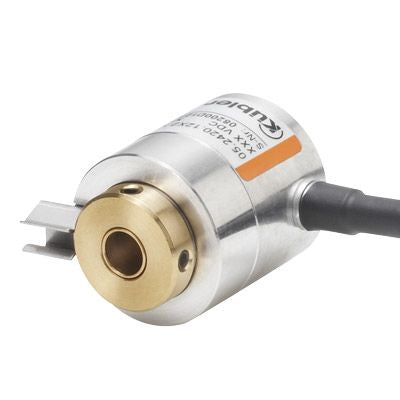

Kubler Encoder 500 ppr Hollow 8 → 30 V dc [05.2420.1242.0500]; 181-1064
by Kubler
0₫
Mã kho: 1811064
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Pulses Per Revolution | 500 |
| Encoder Technology | Incremental |
| Output Signal Type | Push Pull |
| Shaft Type | Hollow |
| Supply Voltage | 8 → 30 V dc |
| Shaft Diameter | 6mm |
| IP Rating | IP50, IP64, IP65 |
| Overall Height | 30.5mm |
| Overall Width | 24mm |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +85°C |
| Switching Frequency | 160 kHz |
| Series | 2420 |
| Mounting Type | Hollow Shaft Flange |
| Connection Type | Cable |
| Current Rating | 50 mA |
