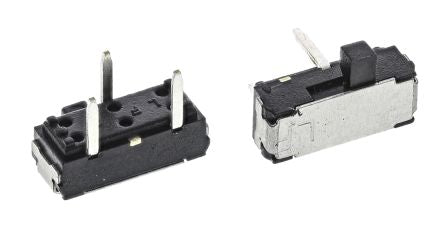

PCB Slide Switch Single Pole Double Throw (SPDT) Latching 200 mA @ 12 V dc Slide [MMP121-R]; 702-3552
0₫
Mã kho: 7023552
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Single Pole Double Throw (SPDT) |
| Mounting Type | PCB |
| Switch Operation | Latching |
| Contact Current Rating | 200 mA @ 12 V dc |
| Terminal Type | Through Hole |
| Actuator Type | Slide |
| Contact Resistance | 50mΩ |
| Mechanical Life | 5000Operations |
| Minimum Operating Temperature | -10°C |
| Operating Temperature Range | -10 → +60°C |
| Contact Material | Silver Plated Phosphor Bronze |
| Maximum Operating Temperature | +60°C |
