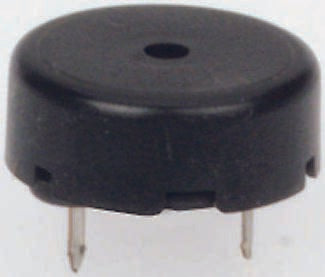

Kingstate 3 → 20 V dc 80dB Through Hole Continuous Internal Piezo Buzzer, 2900 → 3900 Hz [KPE228]; 249-2625
by Kingstate
0₫
Mã kho: 2492625
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Mounting Type | Through Hole |
| Minimum Supply Voltage | 3V dc |
| Maximum Supply Voltage | 20V dc |
| Sound Level | 80dB |
| Drive Type | Internal |
| Tone Type | Continuous |
| Diameter | 24mm |
| Height | 9mm |
| Dimensions | 24 x 9mm |
| Minimum Operating Temperature | -30°C |
| Maximum Operating Temperature | +85°C |
| Maximum Frequency | 3.9kHz |
| Minimum Frequency | 2900Hz |
| Supply Current | 15mA |
