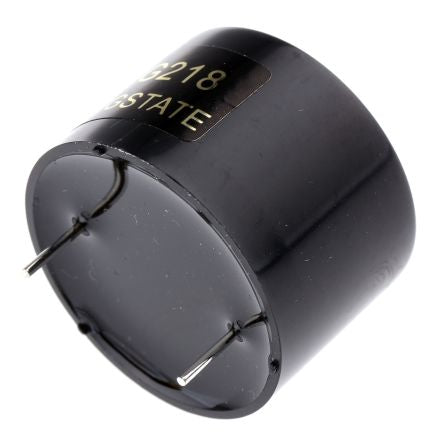

Kingstate 3 → 20 V dc 88dB Through Hole Continuous Internal Piezo Buzzer, 3300 → 4300 Hz [KPE218]; 249-2603
by Kingstate
0₫
Mã kho: 2492603
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Mounting Type | Through Hole |
| Minimum Supply Voltage | 3V dc |
| Maximum Supply Voltage | 20V dc |
| Sound Level | 88dB |
| Drive Type | Internal |
| Tone Type | Continuous |
| Diameter | 24mm |
| Height | 17.5mm |
| Dimensions | 24 x 17.5mm |
| Minimum Operating Temperature | -30°C |
| Maximum Operating Temperature | +85°C |
| Maximum Frequency | 4.3kHz |
| Minimum Frequency | 3300Hz |
| Supply Current | 15mA |
