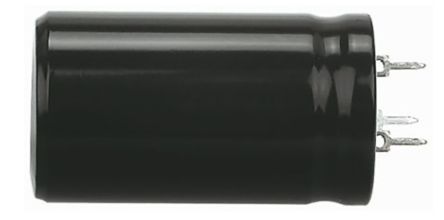

KEMET 220μF 200V dc Aluminium Electrolytic Capacitor, Through Hole 25 x 45mm +85°C 25mm 45mm [ALP22A221AB200]; 227-1248
by KEMET
0₫
Mã kho: 2271248
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 220 µF |
| Voltage | 200 V dc |
| Mounting Type | Through Hole |
| Technology | Electrolytic |
| Dimensions | 25 x 45mm |
| Length | 45mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 25mm |
| Maximum Operating Temperature | +85°C |
| Lifetime | 12000 h @ +85 °C/200V dc/Ir |
| Series | ALP22 |
| Tolerance | ±20% |
| Ripple Current | 1.43 A @ 100Hz |
| Leakage Current | 0.264 mA |
| Polarised | Polar |
| Equivalent Series Resistance | 219 mΩ @ 100 kHz |
