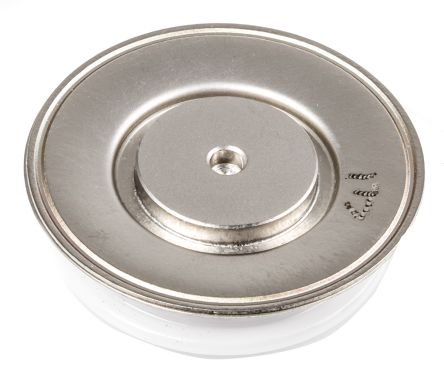

IXYS 1200V 945A, Diode, 2-Pin DO-200AA W0944WC120 [W0944WC120]; 146-1689
by IXYS
0₫
Mã kho: 1461689
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Mounting Type | Capsule |
Package Type | DO-200AA |
Maximum Continuous Forward Current | 945A |
Peak Reverse Repetitive Voltage | 1200V |
Diode Configuration | Single |
Diode Type | Silicon Junction |
Pin Count | 2 |
Maximum Forward Voltage Drop | 1V |
Number of Elements per Chip | 1 |
Diode Technology | Silicon Junction |
Diameter | 42mm |
Peak Non-Repetitive Forward Surge Current | 9kA |
