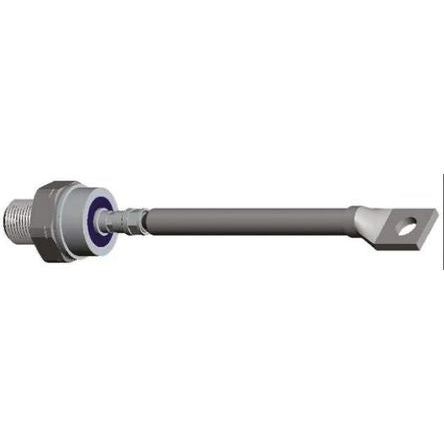

IXYS 1200V 735A, Diode, W0735SA120 [W0735SA120]; 146-1769
by IXYS
0₫
Mã kho: 1461769
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Mounting Type | Thread Mount |
| Maximum Continuous Forward Current | 735A |
| Peak Reverse Repetitive Voltage | 1200V |
| Diode Configuration | Stud Cathode |
| Diode Type | Silicon Junction |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Diode Technology | Silicon Junction |
| Peak Non-Repetitive Forward Surge Current | 10kA |
| Diameter | 28.3mm |
